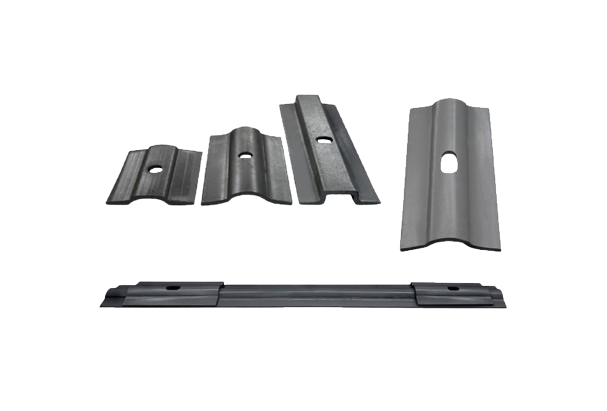

Ω Roof Mat
Ω Roof Mat is widely used for mine and tunnel roof support, usually combined together with wire mesh and bolts to provide a whole
support system.
Key Features
- High strength alloyed steel.
- Used with rock bolts and mesh to provide extra support.
- Enlarge contact surface area to increase the support effect.
- Alternate sizes also available as customer’s requirements.
- Available in black or hot dip galvanized.
| Length(mm) |
Width(mm) |
Thickness(mm) |
Dia of hole(mm) |
| 1500 |
220 |
2 |
30 for round hole |
| 2000 |
230 |
4 |
30*60 and 30*70mm for long hole |
| 3000 |
280 |
6 |
|
| … |
… |
… |
|
Packaging
- Steel or Fiber strapping.
- Bundle sizes to suit the customer, generally packs of 20pcs.
